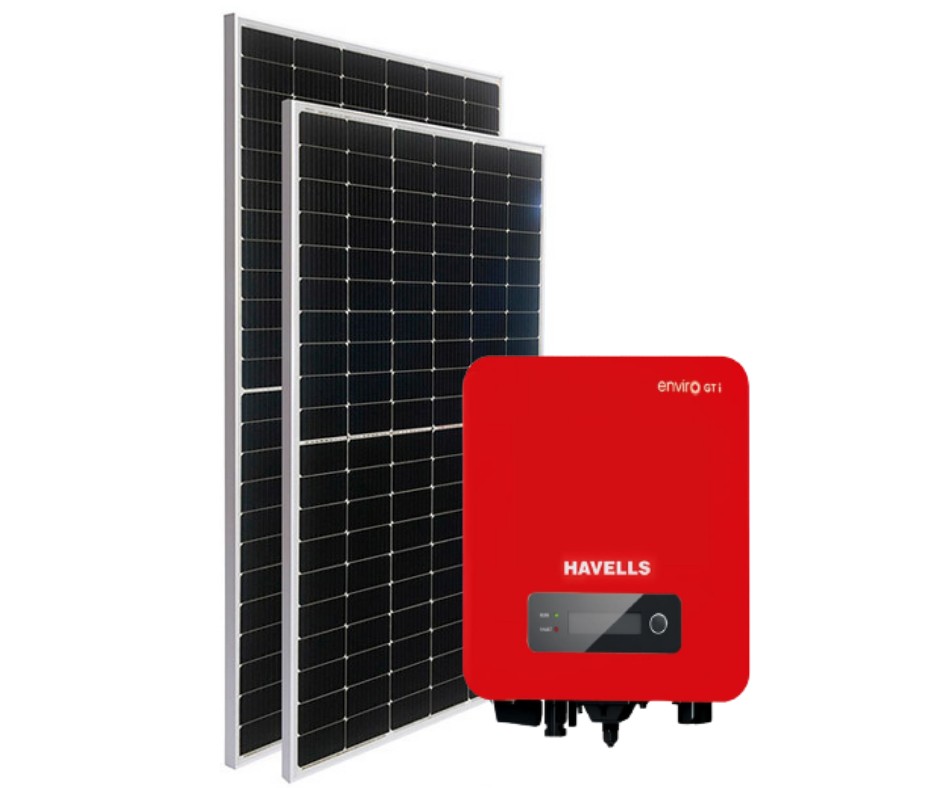

4kW Solar On Grid Plant AP4kW-Aether Pro Series-Monocrystalline

4kW Solar On-Grid Plant The on-grid solar plant is for every home out there who wants to switch to solar. The 4kw solar on-grid plant is a good choice for customers who have a average monthly bill of Rs. 4000. Mechanical Characteristics L× W× T: 2274 mm (L) × 1134 mm (W) × 35 mm (T) Weight : 28.2 kg Solar Cells per Module (Units):72 / (144 half cells) Solar Cell:Monocrystalline Silicon Front Glass:3.2 mm Tempered glass with AR coating Encapsulate:PID Free & UV Resistant Junction Box: IP68 / Weatherproof PPO Connector: IP68 Rated / MC4 Compatible   Electrical Parameters Power (PMax):  460/530wp Short Circuit Current (Isc): 13.73 A – STC Open Circuit Current (Voc): 49.6V Vmp (V):  41.8V Imp (A):  13.04A Module Efficiency:  21.13%   Grid Tied Inverter Model Specifications – 4 kW Input (DC) Maximum DC power 4 kW Maximum DC voltage 1000 V MPPT voltage range 250V – 950V Output (AC) Normal AC output Power 4 kW Normal voltage 400 V AC voltage range 280 V – 480 V AC connection Three phase Topology Transformer Less Max. efficiency 98 % Warranty We will provide 5 years warranty effective from the date of commissioning against all defects in components, material and manufacturing supplied by us. We will undertake all repairs/replacements of the goods parts as required during the warranty period at free of cost to you. PV Panel warranty of 10 years against manufacturing defect and 25 years of performance warranty (upto 80%). 5 years of warranty on inverter. This warranty will not cover damages caused due to lightening, over voltage & normal wear & tear.
