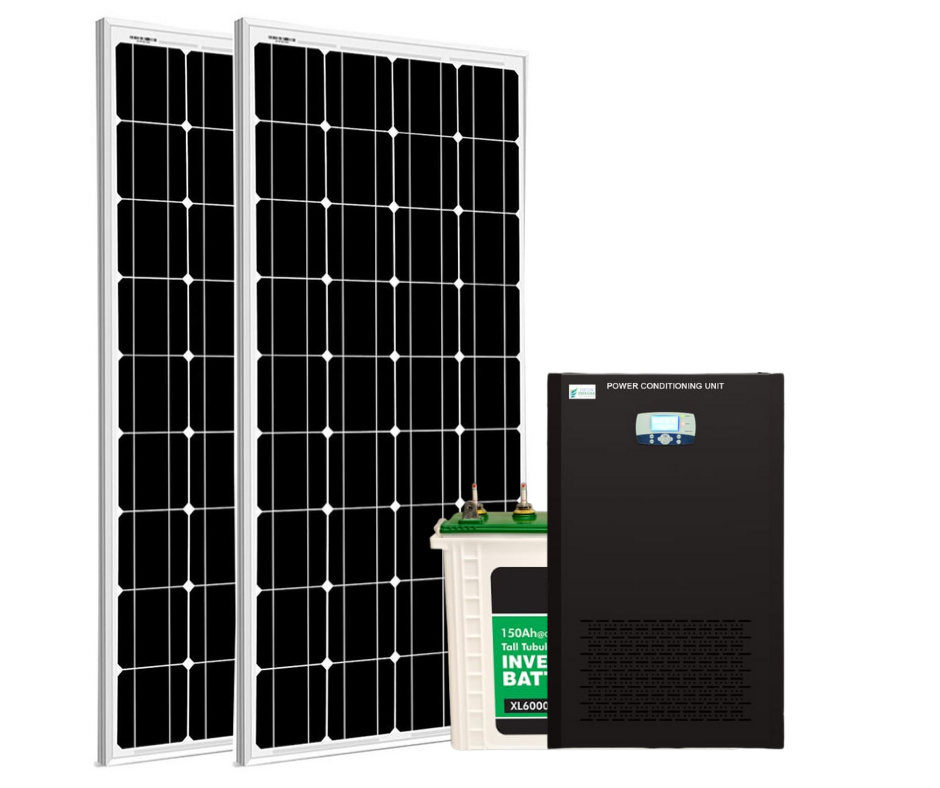

3KVA Solar Off Grid Plant LP3KVA Luna Pro Series-Monocrystalline With Battery

3KVA Solar Off-Grid Plant The off-grid solar plant is for every home out there who wants to switch to solar because there is a power outage in their area and they want power 24*7. Off-grid Plant has battery which help you save the extra power throughout the day which you can use when there’s power cut or during the night. 3KVA Solar Off-grid plant has everything you need to switch to solar. Mechanical Characteristics L× W× T: 2274 mm (L) × 1134 mm (W) × 35 mm (T) Weight : 28.2 kg Solar Cells per Module (Units):72 / (144 half cells) Solar Cell:Monocrystalline Silicon Front Glass:3.2 mm Tempered glass with AR coating Encapsulate:PID Free & UV Resistant Junction Box: IP68 / Weatherproof PPO Connector: IP68 Rated / MC4 Compatible   Electrical Parameters Power (PMax):  460wp/530wp Short Circuit Current (Isc): 13.73 A – STC Open Circuit Current (Voc): 49.6V Vmp (V):  41.8V Imp (A):  13.04A Module Efficiency:  21.13% OFF-GRID PCU Model Specifications – 3KVA/48V Input (DC) Maximum DC power 3 KVA No. of MPPT 1 nos. Max Open Circuit (Voc) 190V MPPT voltage range(Vmp) 75V – 160V MPPT Efficiency 94% Battery Voltage (DC)   48V Output (AC)          Normal AC output Power 3 KVA Normal voltage 230 V Power Load Factor 0.80-unity Output Grid Voltage 230VAC ( -2%) AC voltage range 230VAC ( 10% & -20%) AC connection Single phase Grid Frequency 50Hz ( 5% & -5%) PCU Max. efficiency 85 % Protection IP21 BATTERY: – Technical Specification: – Battery Model: – Tall Tubular Voltage: – 12V Capacity: – 100Ah Battery Type: – C10 Application: – Suitable for Solar Warranty We will provide 2 years warranty effective from the date of commissioning against all defects in components, material and manufacturing supplied by us. We will undertake all repairs/replacements of the goods parts as required during the warranty period at free of cost to you. 25 years of performance warranty (upto 80%). 2 years of warranty on inverter and 3 years of warranty on Battery. This warranty will not cover damages caused due to lightening, over voltage & normal wear & tear.
